LHEN-LB-50T
LUEN
8716100000
4000-6000
| Material: | Please select |
|---|---|
| Axle Number: | Please select |
| Tire Number: | Please select |
| Main Beam: | Please select |
| Quantity: | |

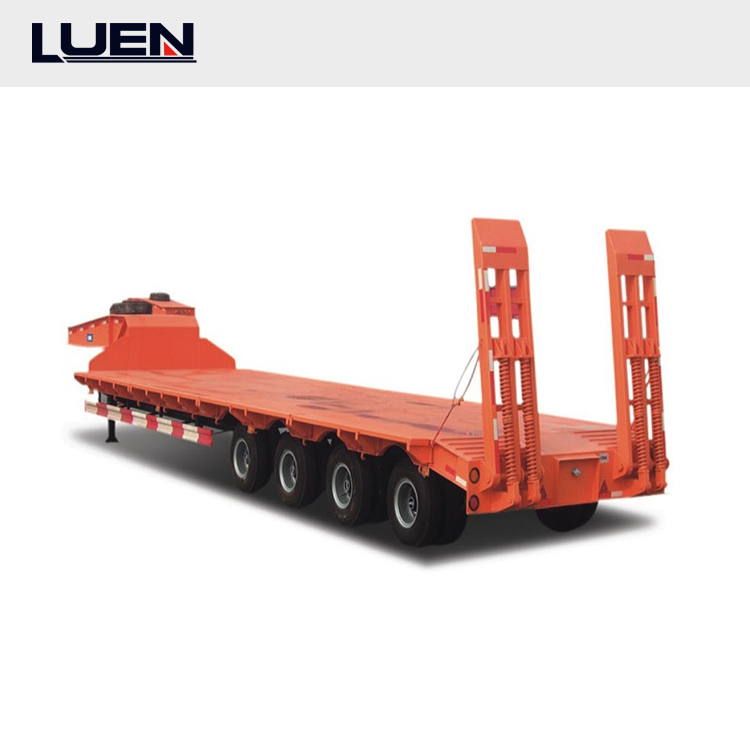

Low flatbed semi-trailers are usually used to transport heavy vehicles (such as tractors, buses, special vehicles, etc.), rail vehicles, mining machinery, forestry machinery, construction machinery (such as excavators, bulldozers, loaders, road pavers, cranes, etc. ) and other heavy loads, the lower the center of gravity, the better the stability and safety, and the greater the ability to transport super high loads and pass overhead obstacles.
| Brand | LUEN |
| Maximum Load | 45T |
| Length * Width *Height(mm) | 13000*3000* 1320 |
| Axle | LH 12T Low bed bridge Axle *4 |
| Suspension | LH 13T Mechanical Suspension*4 |
| King Pin | 2"/3.5”welding 1 assembly |
| Landing Gear | 28T linkage / single action |
| Tire /Rim | 8.25R16 *10 |
| Main Beam | Height:450mm |
| 12/10/14 mm | |
| Manganese steel | |
| Bottom Plate | 4mm pattern protective bottom plate |
| Ladder | F olding hydraulic ladder |
| The above configuration can be adjusted according to customer requirements, and can be equipped with rigid suspension, equipped with 3-7 axle, telescopic beam low bed semi-trailer. | |
Low flatbed semi-trailers are usually used to transport heavy vehicles (such as tractors, buses, special vehicles, etc.), rail vehicles, mining machinery, forestry machinery, construction machinery (such as excavators, bulldozers, loaders, road pavers, cranes, etc. ) and other heavy loads, the lower the center of gravity, the better the stability and safety, and the greater the ability to transport super high loads and pass overhead obstacles.
| Brand | LUEN |
| Maximum Load | 45T |
| Length * Width *Height(mm) | 13000*3000* 1320 |
| Axle | LH 12T Low bed bridge Axle *4 |
| Suspension | LH 13T Mechanical Suspension*4 |
| King Pin | 2"/3.5”welding 1 assembly |
| Landing Gear | 28T linkage / single action |
| Tire /Rim | 8.25R16 *10 |
| Main Beam | Height:450mm |
| 12/10/14 mm | |
| Manganese steel | |
| Bottom Plate | 4mm pattern protective bottom plate |
| Ladder | F olding hydraulic ladder |
| The above configuration can be adjusted according to customer requirements, and can be equipped with rigid suspension, equipped with 3-7 axle, telescopic beam low bed semi-trailer. | |
